UP-3000 High Precision Falling Ball Drop Impact Tester with Stepless Adjustable Drop Height and Multiple Standard Steel Balls

Product Categories
Dongguan Youbi Test Equipment Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

UP-3000 High Precision Falling Ball Drop Impact Tester with Stepless Adjustable Drop Height and Multiple Standard Steel Balls

Supply Ability : 30 Unit/month

Model Number : UP-3000

Drop Height Range : 0~2000mm (stepless adjustable, customized height available)

MOQ : 1

Delivery Time : 5~10 work days

Service Support : OEM ODM

Payment Terms : D/A,D/P,T/T

Price : Negotiable

Steel Ball Weight Tolerance : ±5g

Certification : CE,ISO

Language : Chinese and English

Brand Name : YOUBI

Model NO. : UP-3000

Place of Origin : CHINA

Standard Steel Ball Weight : 55g~2280g multiple standard steel balls for option

Packaging Details : Professional export packaging

Contact Now

UP-3000 High Precision Falling Ball Drop Impact Tester
Product Introduction

The Falling Ball Drop Impact Tester is designed to verify the impact resistance and structural stability of various materials and finished products. It utilizes DC electromagnetic automatic release to achieve standard free fall of steel balls from adjustable heights, generating consistent impact energy. The instrument evaluates sample quality by detecting cracking, deformation, and damage after impact. Equipped with infrared precise positioning and anti-secondary impact design, it ensures highly accurate and repeatable test results.

Compliance Standards
  • ISO 6603: Impact resistance test for plastics and hard rubber
  • ASTM D5420 / D3029: Falling ball impact test for rigid materials
  • JIS K6754 / R3205: Japanese standard for material impact testing
  • BS 2782: British standard for plastic impact performance
  • GB/T: Chinese national standards for material impact detection
Applications

Suitable for impact resistance testing of plates, films, and finished parts across multiple industries. Ideal for product certification and daily quality control in:

  • Plastic Industry
  • Glass & Acrylic Industry
  • Electronics & Appliances
  • Packaging Industry
  • Automotive & New Materials
Technical Specifications
Parameter Specification
Drop Height Range 0~2000mm (stepless adjustable, customized height available)
Drop Control Mode Electromagnetic automatic release, free of manual operation
Positioning Mode High-precision infrared positioning for accurate drop point
Standard Steel Ball Weight 55g~2280g multiple standard steel balls for option
Steel Ball Weight Tolerance ±5g
Anti-secondary Impact Function Yes (effectively avoid secondary impact interference)
Lifting Bracket Speed 15mm/s
Working Power Supply AC 220V 50Hz
Working Temperature -20℃ ~ 40℃
Equipment Features High precision, stable performance, low noise, easy operation, repeatable test data

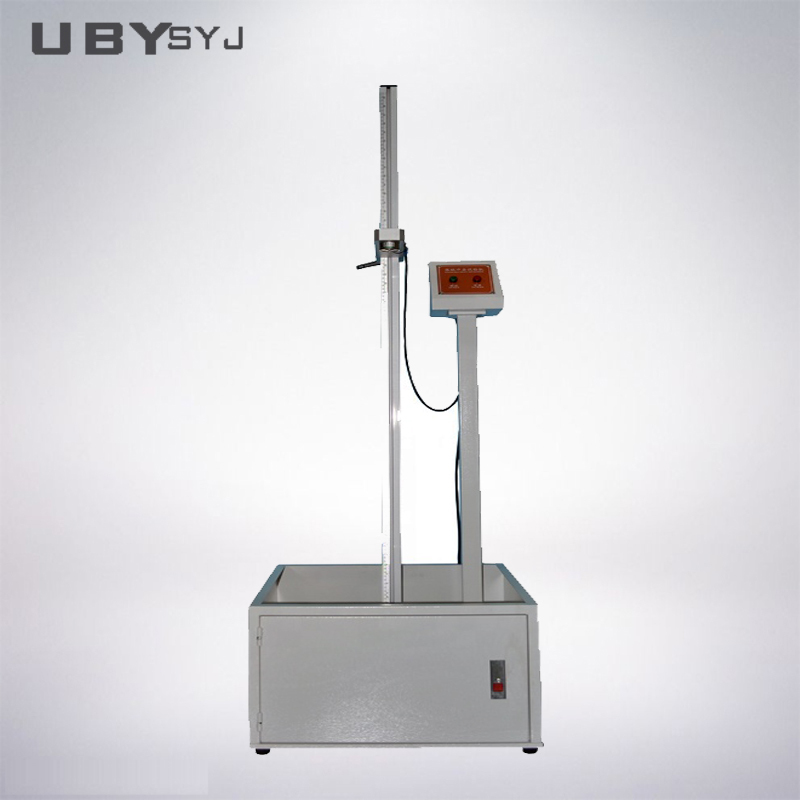

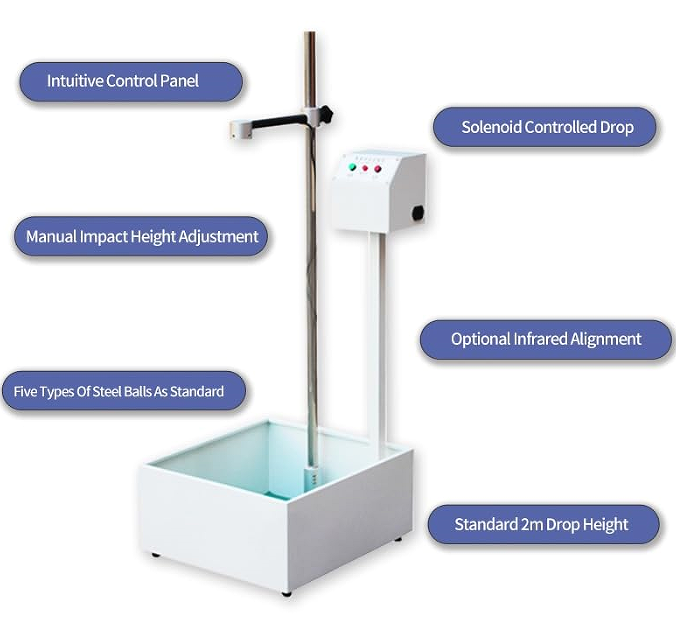

Product Images
UP-3000 High Precision Falling Ball Drop Impact Tester with Stepless Adjustable Drop Height and Multiple Standard Steel Balls UP-3000 High Precision Falling Ball Drop Impact Tester with Stepless Adjustable Drop Height and Multiple Standard Steel Balls UP-3000 High Precision Falling Ball Drop Impact Tester with Stepless Adjustable Drop Height and Multiple Standard Steel Balls
Our Service Process
1) Customer Inquiry Process:

Discussing testing requirements and technical details, suggesting suitable products, and providing competitive pricing according to customer requirements.

2) Specifications Customization Process:

Creating detailed drawings for customized requirements, providing reference photos, and confirming final solutions and pricing.

3) Production and Delivery Process:

Manufacturing according to confirmed requirements, providing production progress photos, conducting factory or third-party calibration, and arranging secure packaging and timely delivery.

4) Installation and After-sales Service:

Providing field installation services and comprehensive after-sales support.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of free maintenance, extended to 14 months considering sea transportation. If your machine requires service, contact us via email or phone. We will diagnose the issue through conversation or video chat and provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specific requirements. We provide OEM and ODM services, including placing your logo on the equipment.

How can I install and use the machine?

We provide comprehensive English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. When necessary, we provide on-site installation assistance.
